昇圧コンバータモジュール
MT3608 2A Max DC-DC Step Up Power Module Booster Power Module For Arduino 3-5V to 5V/9V/12V/24V
Product features:
1. The maximum output current: 2A
2. The input voltage: 2V and 24V
3. The maximum output voltage: > 5V - 28V
4. Efficiency: > 93%
| Product model |
MT3608
2A(DC-DC)adjustable
step-up module |
| The input voltage |
2-24V |
| The output voltage |
5-28V |
| The output current |
2A(MAX) |
| Conversion efficiency |
< 96% |
| Switching efficiency |
1.2MHz |
| The output ripple |
100mV |
| Load Regulation |
±0.5% |
| Voltage regulation factor |
±0.5% |
| Working temperature |
-45℃～85℃ |

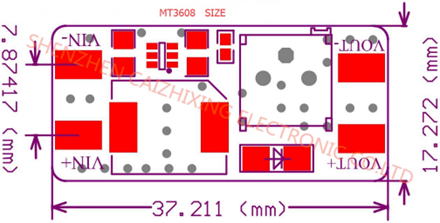

| The size |
37.2mm*17.2mm*14mm(L*W*H) |
| Weight |
5g |
|
